Debugging Application Network
How do I access the network namespace of a container in my worker node?
When containerd
generates the network namespace for your container it does not show up out of the box in the network namespace list. In fact, when running:
sudo ip netns list
You’ll get an empty list, even if using
sudo ctr -n oakestra container ls
will give you a list of running containers.
So… what do we do?
When a container is deployed, and a network namespace is created, the symlink of the net namespace is not automatically created inside the /var/run/netns
directory. So we just need to do that!
First, let’s retrieve the PID
of the container:

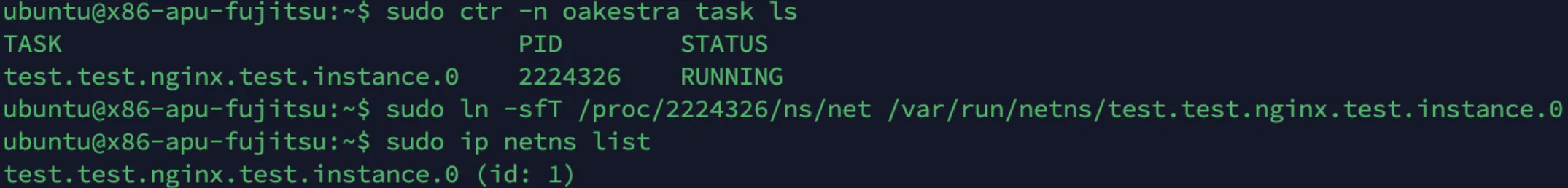

sudo ctr -n oakestra task ls
In this example, the PID
is 222432
Caution
Create the /var/run/netns/
directory with mkdir -p /var/run/netns/
if not already present.
Then, create the symlink using the command:
ln -sfT /proc/<container PID>/ns/net /var/run/netns/<container name>
In this example, the command will look like:
ln -sfT /proc/222432/ns/net /var/run/netns/test.test.nginx.test.instance.0
Now if we run the command
sudo ip netns list
You will see the test.test.nginx.test.instance.0
namespace.
How to debug the network?
Once the namespace is accessible via the netns
command, you can enter inside it and debug your environment using the classic utilities such as tcpdump
/tshark
, and you can check the interfaces using the ip
utils or execute any command you fancy. You can even create new interfaces inside and play around with them.
Simply use
ip netns exec <containername> <your command>
E.g. to show the interfaces inside the namespace of the previous example, we can run:
sudo ip netns exec test.test.nginx.test.instance.0 sudo ip a s`
What about the debugging network of my unikernel-based applications?
If you’re running unikernels using Oakestra native unikernel virtualization, you’ll automatically find the namepsace in ip netns list
.
If you’re using runu
runtime attached to containerd, you can still use the procedure described above for containerd.
